Product Description

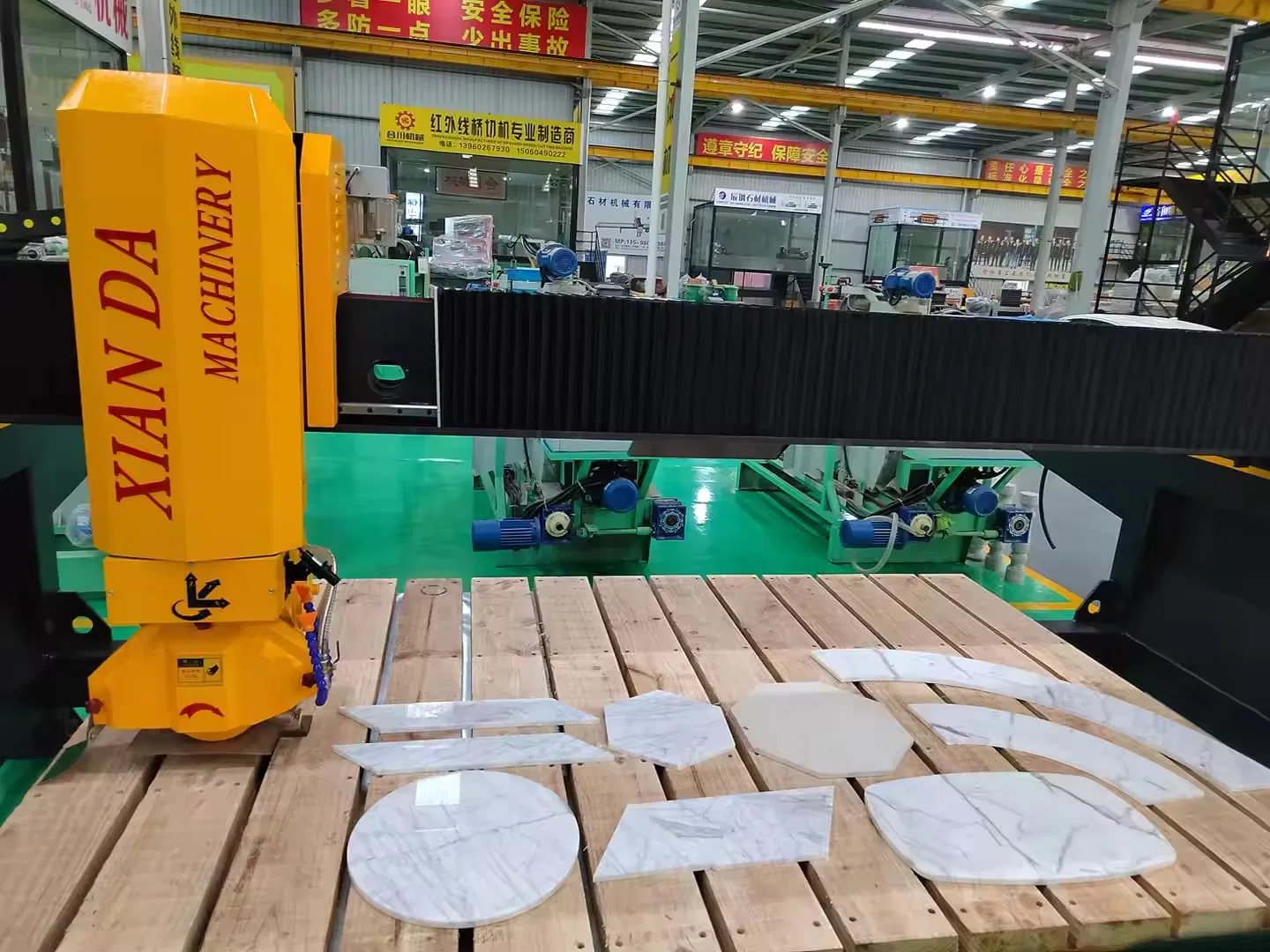

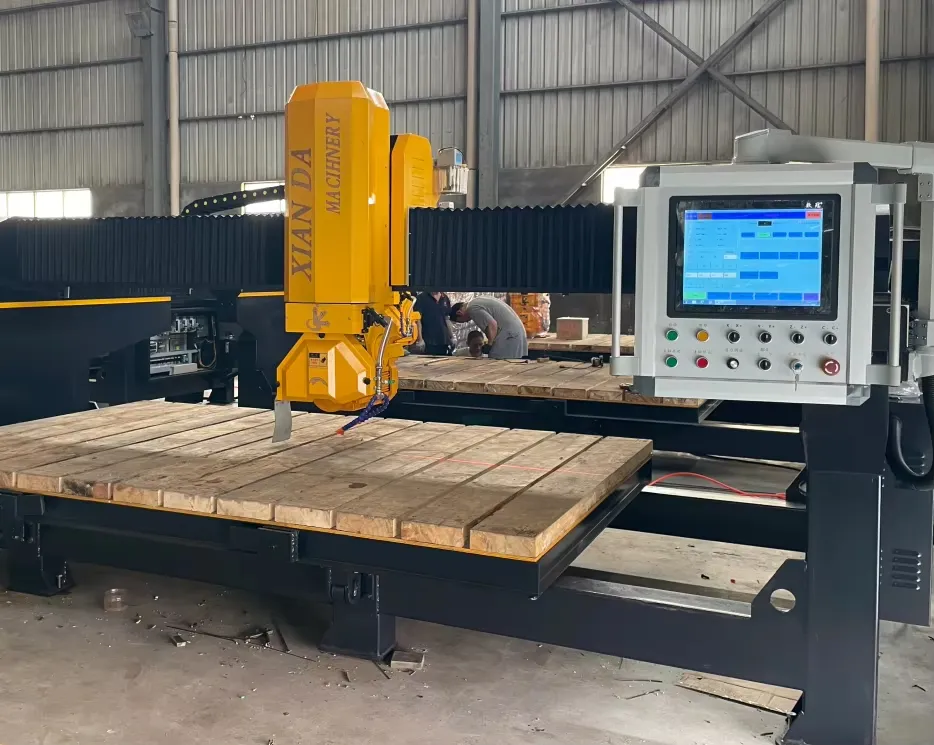

The ZDCM-400A/B/400B-MC Monoblock Infrared Bridge Cutting Machine is a PLC servo-controlled stone processing equipment, designed for large-scale, high-precision cutting of granite, marble and other high-value stone slabs. With its integrated structure,efficient cutting performance and superior precision, it’s the ideal solution for bulk large stone panel production.
Specification
|
Technical Parameter
|
Unit
|
ZDCM-400C
|
ZDCM-400CL
|
ZDCM-400C-MC
|
|
Control system type
|
/
|
CNC
|
CNC
|
CNC
|
|
Blade diameter
|
mm
|
Φ300-Φ400
|
Φ300-Φ400
|
Φ300-Φ400
|
|
Worktable size
|
mm
|
3200X2000
|
3200X2000
|
3200X2000
|
|
Max processing size
|
mm
|
3200X2000X80
|
3200X2000X80
|
3200X2000X80
|
|
Worktable tilting degree
|
°
|
0, 85°
|
0, 85°
|
0,85°
|
|
Cutting head rotation degree
|
°
|
0~360°
|
0~360°
|
0~360°
|
|
Cutting head chamfer rotating degree
|
°
|
0,45°
|
0,45°
|
0,45°
|
|
Cutting head chamfer control mode
|
/
|
Hydraulically controlled
|
Servo motor control
|
Hydraulically controlled
|
|
Main motor power
|
KW
|
15
|
15
|
15+5.5
|
|
Outline dimension
|
mm
|
5000 x3100 2600
|
5000 x3100 2600
|
5000 x3100 2600
|
|
Water consumption
|
m³/h
|
≈2
|
≈2
|
≈2
|
