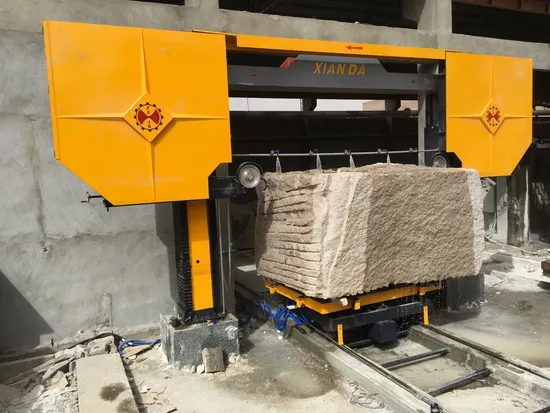

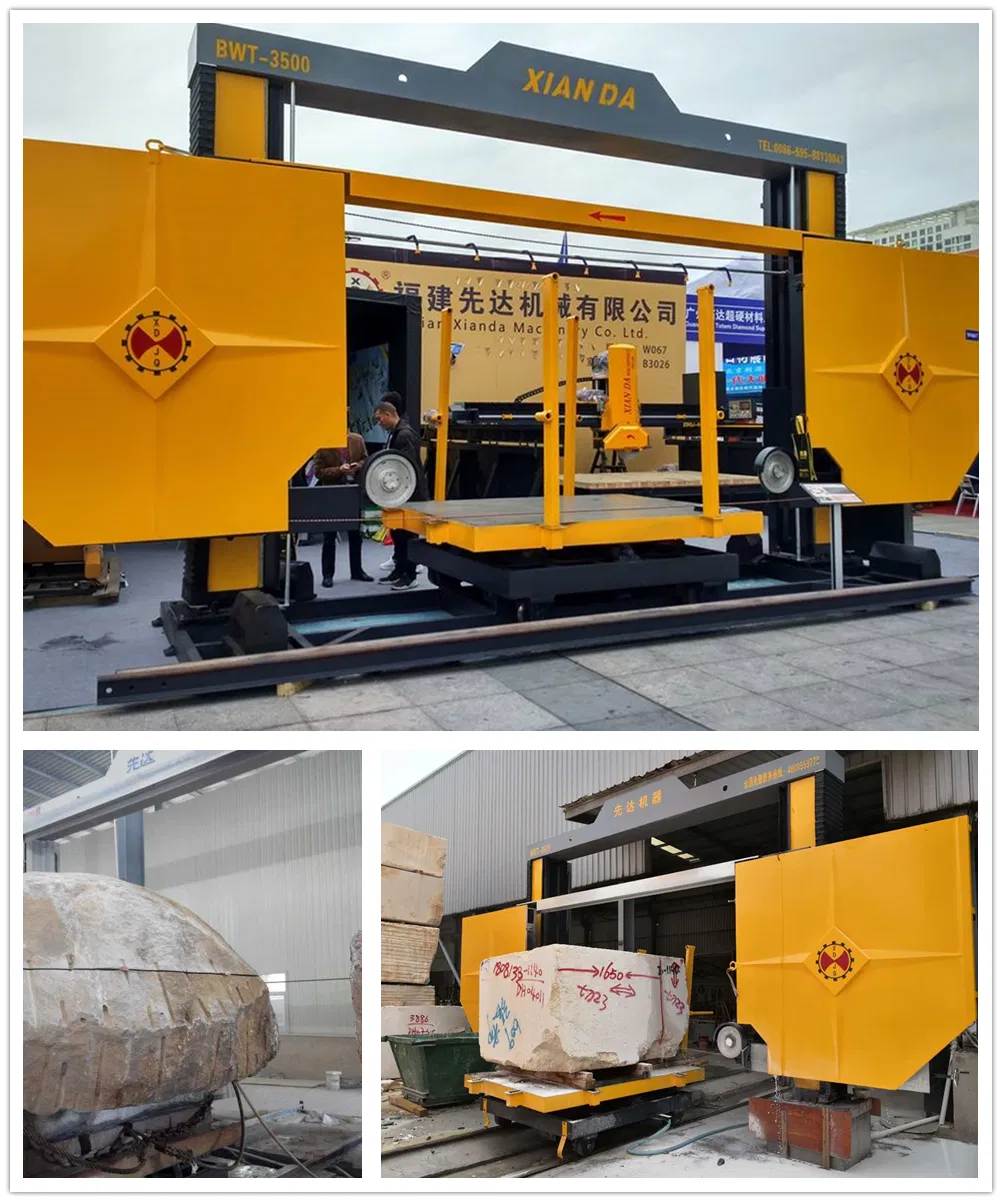

Mono Diamond Wire Saw Block Dressing Machine BWT-3500
BWT-3500 block dressing machine adopts PLC control, lifting structure use 16 surfaces slideway. 28pcs rolling wheels structure. And synchronous lifting through intermediate drive makes its cutting stable, high efficiency. It can dress four surface of block as worktable with 360 rotating.It’s the ideal equipment for block cutting to slice and block dressing.
BWT-3500 block dressing machine adopts PLC control, lifting structure use 16 surfaces slideway. 28pcs rolling wheels structure. And synchronous lifting through intermediate drive makes its cutting stable, high efficiency. It can dress four surface of block as worktable with 360 rotating.It’s the ideal equipment for block cutting to slice and block dressing.
Technical Parameter
|
Parameter
|
Unit
|
BWT-3000-15 | BWT-3500-18 |
BWT-3500-21
|
|

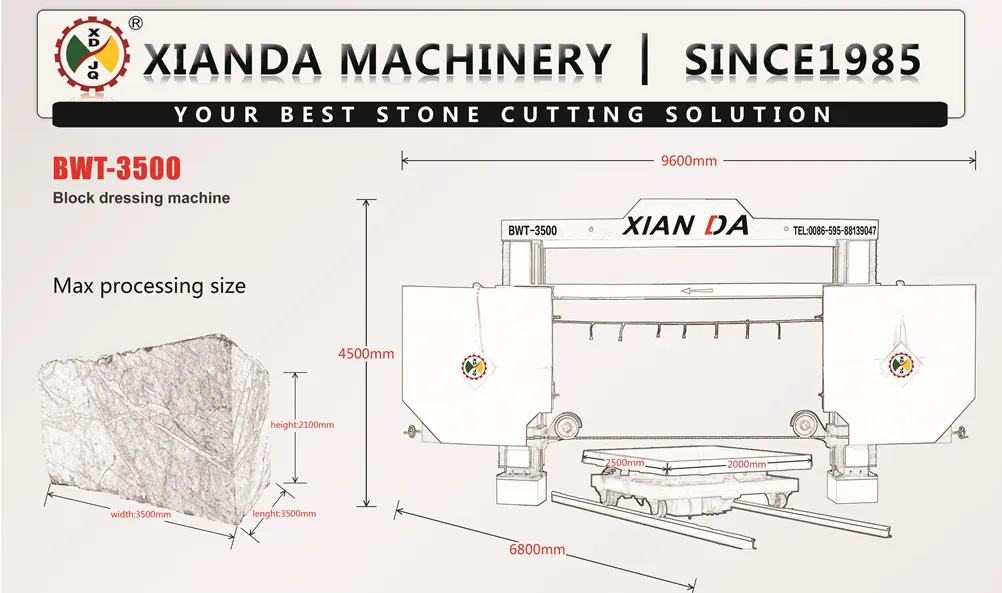

Max processing size
|
mm
|
3000*3000*1500 | 3500*3000*1800 |
3500*3500*2100
|
|
Dimension of worktable
|
mm
|
1600*2000 | 1800*2000 |
2000*2500
|
|
Main motor
|
kw
|
11 | 11 |
15
|
| Table bearing weight | T | 20 | 35 | 50 |
| Wire speed | m/s | 0-40 | 0-40 | 0-40 |
|
Gross motor
|
kw
|
19
|
||
|
Outline dimension
|
mm
|
8800*5500*4100 | 9300*5900*4800 |
9800*6800*5600
|
|
Gross weight
|
kg
|
7200 | 9000 | 10700 |
|
Water consumption
|
m³/h
|
6 | 6 | 6 |
