Xianda Four-cylinder Gantry Stone Cutting Machine for Processing Column Slab

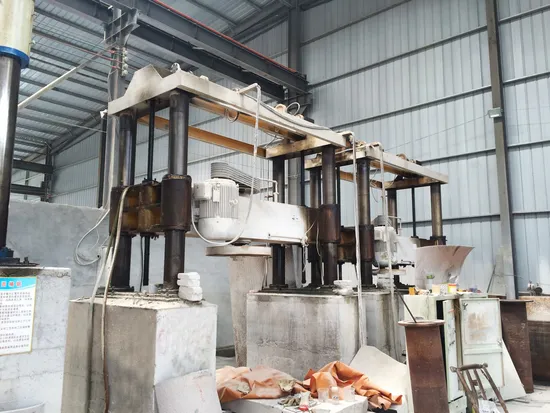

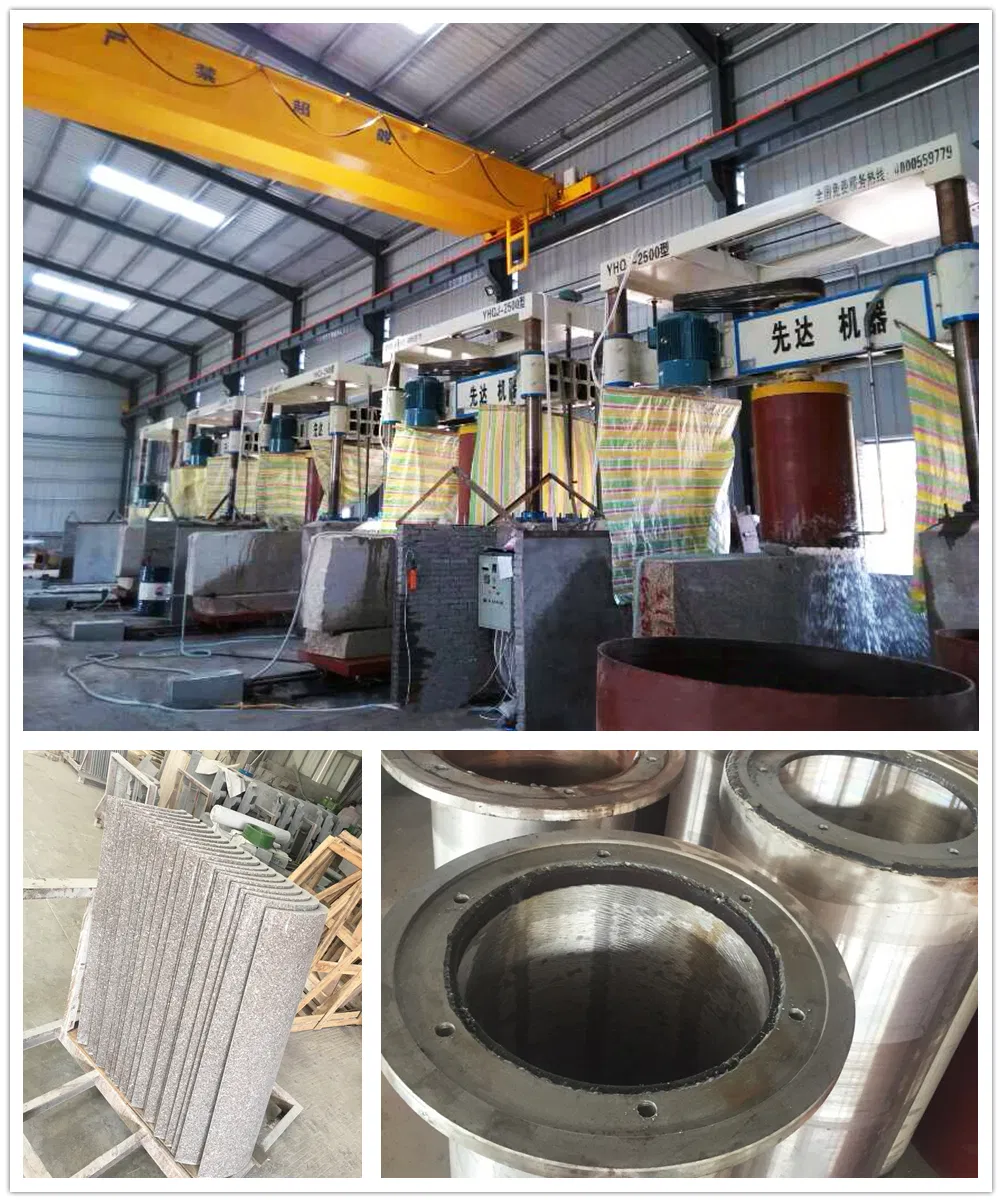

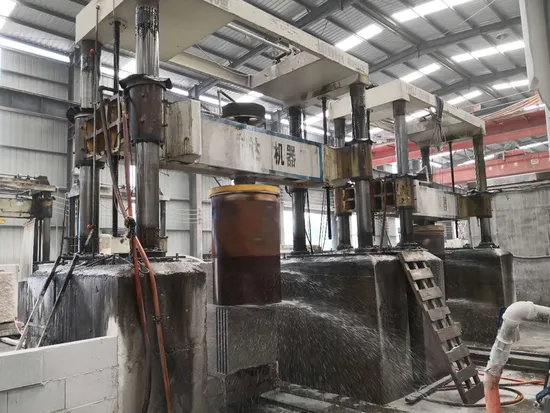

Detailed Photos
Product Description
This machine has motorized vertical feeding and automatic slicing to fulfil cycle cutting. It’s suitable for cutting block to granite slabs.
Product Parameters
| Parameter |
Unit |
YHQJ-2500 |
| Max Diameter of Cylinder |
mm |
φ2500 |
| Max Vertical Lifting |
mm |
1500 |
| Max Worktable Travel |
mm |
3000 |
| Main Motor |
kw |
22/30 |
| Gross Power |
kw |
26.5/34.5 |
| Outline Dimension |
mm |
3800*6300*4850 |
| Gross Weight |
kg |
8000 |
| Water Consumption |
m³/h |
8 |
Model NO.YHQJ-2500
TypeGantry Cutting Machine
UsageGranite, Marble
ApplicationMachinery & Hardware, Art & Craft, Construction, Stone Industry, Stone Machinery
Source Voltage380V
AutomationAutomatic
Cutting AbilityHigh Speed
ControlMicropcomputer
CertificationCCC, SONCAP, GOST, ISO, CE, SGS;IAF
Max Diameter of Cylinderφ2500mm
Max Vertical Lifting Travel1500mm
Max Worktable Travel3000mm
Main Motor22;30kw
Gross Power26.5;34.5kw
Outline Dimension3800*6300*4850mm
Gross Weight8000kg
Water Consumption8m³/H
Transport PackagePlastic Package, Suitable for Sea Transportation
Specification3800*6300*4850mm
TrademarkXianda
OriginFujian, China (Mainland)
HS Code84641080
Production Capacity1000set Per Year
