Product Description

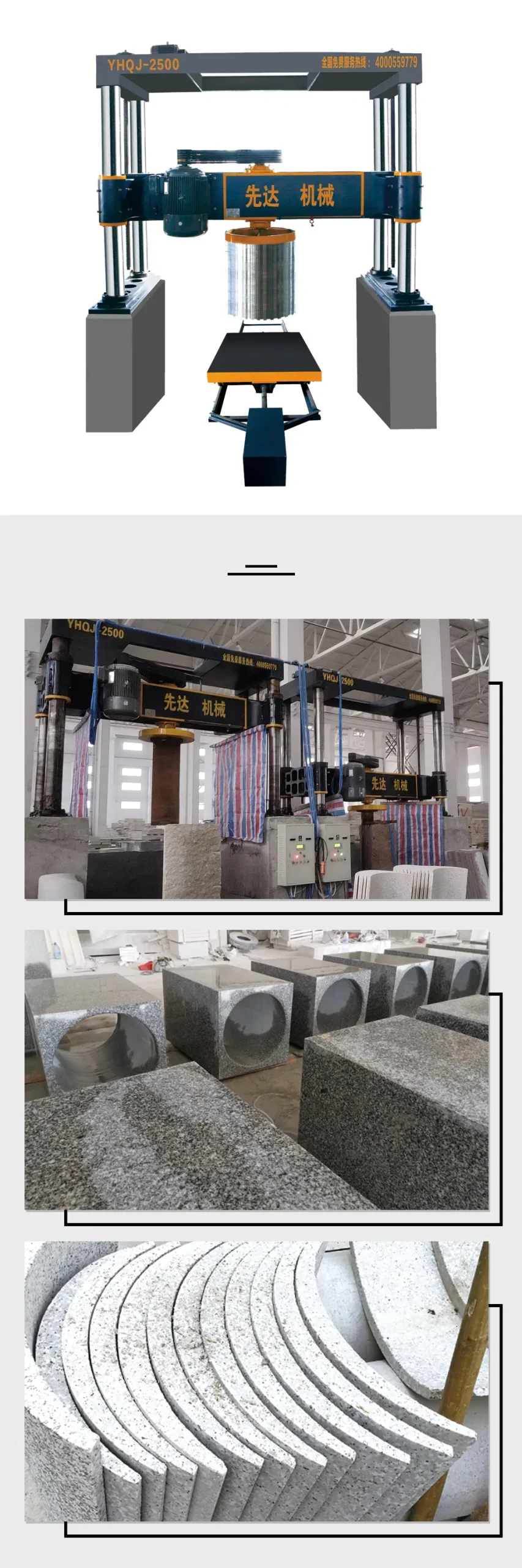

Xianda YHQJ-2000-2500 four-cylinder gantry column slab granite cutting machine has the automatic cycle function of cutting and processing slabs with mobile vertical moving and autom atic cutting slab by slab. When cutting with single cylinder saw blade, the slab’s middle thickness is a little bigger than two sides, when cutting with double circular saw blades, it will process the same thick column slabs.
Technical Parameter
| Parameter | Unit | YHQJ-2000 | YHQJ-2500 |
| Max diameter of cylinder | mm | Φ2000 | Φ2500 |
| Max vertical lifting travel | mm | 1500 | 1500 |
| Max worktable travel | mm | 3000 | 3000 |
| Main motor | kw | 22/30 | 22/30 |
| Gross motor | kw | 26.5/34.5 | 26.5/34.5 |
| Outline dimension | mm | 3300*1700*3100 | 3800*1700*3100 |
| Gross weight | kg | 7500 | 8000 |
| Water consumption | m3/h | 8 | 8 |
Xianda Machinery

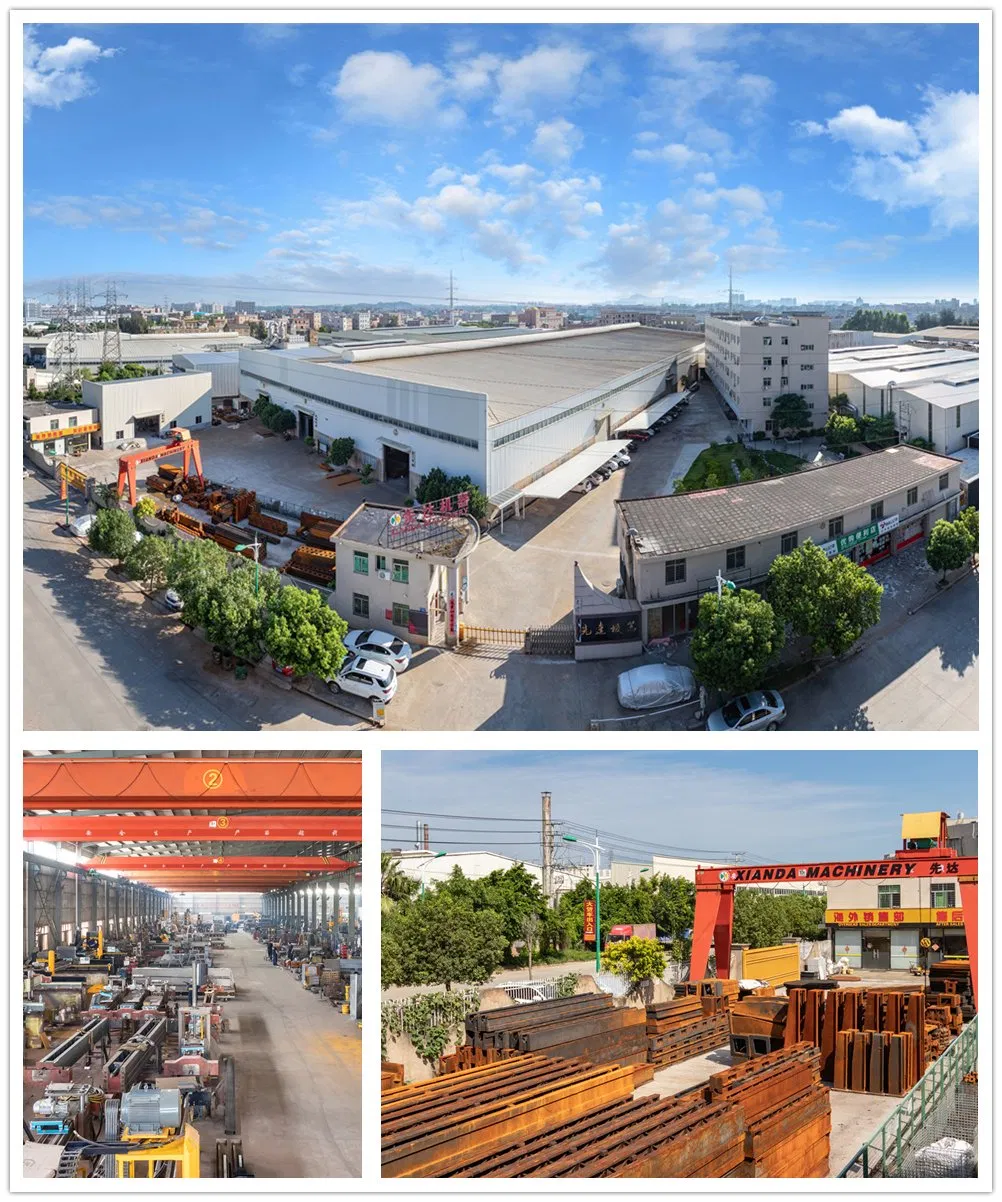

Fujian Xianda Machinery Co.,Ltd is a leading company for stone cutting machines and tools in China, established in 1985 and covers 20,000m³ area which located in Jinjiang Wuli lndustrial area, nearby the longest and oldest stone bridge in the world, named “Wuli Bridge” and next to biggest stone market in the world- Shuitou.
With more than 34 years’ experience specializing in developing and producing a series of diamond wire saw machine, column processing machine, bridge cutting machine, carving machine, profiling linear machine, baluster machine, etc. We occupied around 80% market in China for column processing machines, and own more than 30 overseas countries users.
Since its foundation in 1985, we keep”Top Technology and Superior Quality”as our standard for all machines and got CE, ISO Quality Gold Award , etc.
“China Recommend Building Manufacture Enterprise”, “3A Enterprise Credit Evalution” , etc for company.And we are always the sponsor for education as our CEO Mr Roy is enthusiastic about the public welfare establishments.
Xianda always keep”Creat the highest value of your stone”as purpose,your visiting and contacting is always welcomed.
